9HVO | pdb_00009hvo

Structure of the transcribing Pol II-RECQL5 complex


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.80 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Structural basis of RECQL5-induced RNA polymerase II transcription braking and subsequent reactivation.

Zhang, L.Gordiyenko, Y.Morgan, T.Franco, C.Tufegdzic Vidakovic, A.Zhang, S.

(2025) Nat Struct Mol Biol

  • DOI: https://doi.org/10.1038/s41594-025-01586-6
  • Primary Citation of Related Structures:
    9HVO, 9HVQ, 9HWG

  • PubMed Abstract:

    Abnormally fast transcription elongation can lead to detrimental consequences such as transcription-replication collisions, altered alternative splicing patterns and genome instability. Therefore, elongating RNA polymerase II (Pol II) requires mechanisms to slow its progression, yet the molecular basis of transcription braking remains unclear. RECQL5 is a DNA helicase that functions as a general elongation factor by slowing down Pol II. Here we report cryo-electron microscopy structures of human RECQL5 bound to multiple transcription elongation complexes. Combined with biochemical analysis, we identify an α-helix of RECQL5 responsible for binding Pol II and slowdown of transcription elongation. We further reveal that the transcription-coupled DNA repair (TCR) complex allows Pol II to overcome RECQL5-induced transcription braking through concerted actions of its translocase activity and competition with RECQL5 for engaging Pol II. Additionally, RECQL5 inhibits TCR-mediated Pol II ubiquitination to prevent activation of the DNA repair pathway. Our results suggest a model in which RECQL5 and the TCR complex coordinately regulate transcription elongation rates to ensure transcription efficiency while maintaining genome stability.


  • Organizational Affiliation

    MRC Laboratory of Molecular Biology, Cambridge, UK.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit1,970Sus scrofa domesticusMutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for A0A8D1DPV6 (Sus scrofa)
Explore A0A8D1DPV6
Go to UniProtKB:  A0A8D1DPV6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A8D1DPV6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit beta1,174Sus scrofa domesticusMutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for A0A0B8RVL1 (Sus scrofa domesticus)
Explore A0A0B8RVL1
Go to UniProtKB:  A0A0B8RVL1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0B8RVL1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB3275Sus scrofa domesticusMutation(s): 0
UniProt
Find proteins for I3LCH3 (Sus scrofa)
Explore I3LCH3
Go to UniProtKB:  I3LCH3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupI3LCH3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
RNA polymerase II subunit D142Sus scrofa domesticusMutation(s): 0
UniProt
Find proteins for A0A4X1VM56 (Sus scrofa)
Explore A0A4X1VM56
Go to UniProtKB:  A0A4X1VM56
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A4X1VM56
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit E210Sus scrofa domesticusMutation(s): 0
UniProt
Find proteins for I3LSI7 (Sus scrofa)
Explore I3LSI7
Go to UniProtKB:  I3LSI7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupI3LSI7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC2127Sus scrofa domesticusMutation(s): 0
UniProt
Find proteins for A0A4X1VEK9 (Sus scrofa)
Explore A0A4X1VEK9
Go to UniProtKB:  A0A4X1VEK9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A4X1VEK9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit172Sus scrofa domesticusMutation(s): 0
UniProt
Find proteins for A0A4X1VKG7 (Sus scrofa)
Explore A0A4X1VKG7
Go to UniProtKB:  A0A4X1VKG7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A4X1VKG7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC3150Sus scrofa domesticusMutation(s): 0
UniProt
Find proteins for I3LCB2 (Sus scrofa)
Explore I3LCB2
Go to UniProtKB:  I3LCB2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupI3LCB2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB9125Sus scrofa domesticusMutation(s): 0
UniProt
Find proteins for P60899 (Sus scrofa)
Explore P60899
Go to UniProtKB:  P60899
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60899
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerases I, II, and III subunit RPABC567Sus scrofa domesticusMutation(s): 0
UniProt
Find proteins for A0A4X1VYD0 (Sus scrofa)
Explore A0A4X1VYD0
Go to UniProtKB:  A0A4X1VYD0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A4X1VYD0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase II subunit RPB11-a117Sus scrofa domesticusMutation(s): 0
UniProt
Find proteins for F1RKE4 (Sus scrofa)
Explore F1RKE4
Go to UniProtKB:  F1RKE4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupF1RKE4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage
RNA polymerase II, I and III subunit K58Sus scrofa domesticusMutation(s): 0
UniProt
Find proteins for A0A4X1TRS6 (Sus scrofa)
Explore A0A4X1TRS6
Go to UniProtKB:  A0A4X1TRS6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A4X1TRS6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 16
MoleculeChains Sequence LengthOrganismDetailsImage
ATP-dependent DNA helicase Q5P [auth O]991Homo sapiensMutation(s): 0
Gene Names: RECQL5RECQ5
EC: 5.6.2.4
UniProt & NIH Common Fund Data Resources
Find proteins for O94762 (Homo sapiens)
Explore O94762
Go to UniProtKB:  O94762
PHAROS:  O94762
GTEx:  ENSG00000108469
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO94762
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains LengthOrganismImage

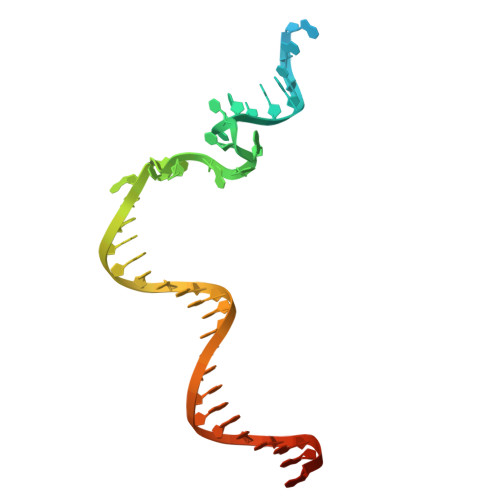

Nontemplate DNAM [auth N]48synthetic construct
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 14
MoleculeChains LengthOrganismImage
RNAN [auth P]15synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 15
MoleculeChains LengthOrganismImage
Template DNAO [auth T]48synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ZN
Query on ZN

Download Ideal Coordinates CCD File
Q [auth A]
R [auth A]
T [auth B]
U [auth C]
V [auth I]
Q [auth A],
R [auth A],
T [auth B],
U [auth C],
V [auth I],
W [auth I],
X [auth J],
Y [auth L]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
S [auth A]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.80 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.2_5419:

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Medical Research Council (MRC, United Kingdom)United KingdomMC_UP_1201/30

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-16
    Type: Initial release
